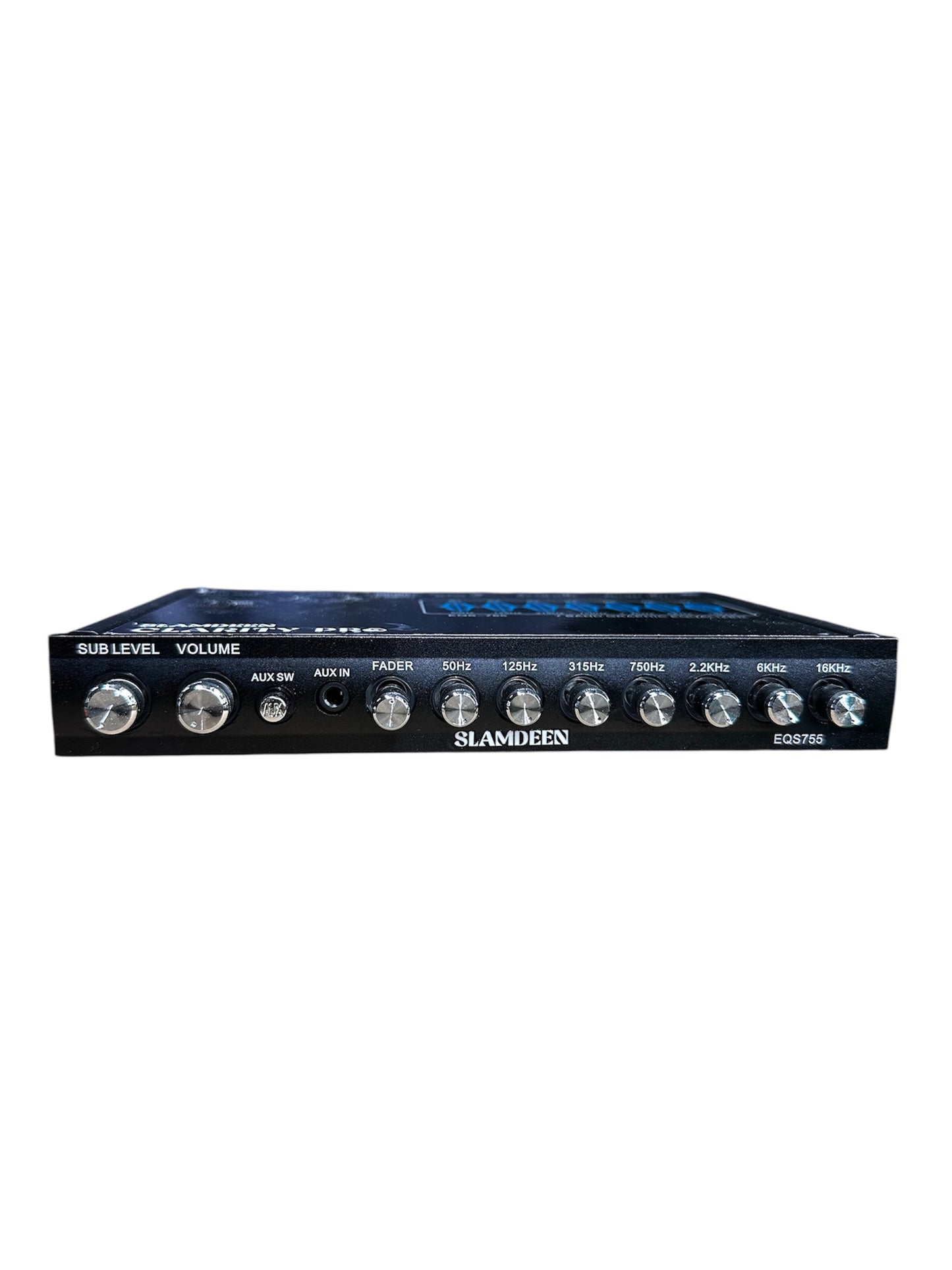

7 BAND EQ

Specifications

Equalizer Bands (Center Frequencies):

50Hz · 125Hz · 315Hz · 750Hz · 2.2kHz · 6kHz · 16kHz

Boost / Cut Range:

±12dB

Signal-to-Noise Ratio:

83dB

Frequency Response:

8Hz – 140kHz (±1dB)

Maximum Output Voltage:

8V

Total Harmonic Distortion (THD):

0.01%

Input Sensitivity:

RCA: < 3.6V

High-Level: < 10.8V

Input Impedance:

20 kΩ

Output Impedance:

1 kΩ

Stereo Separation:

73dB @ 1kHz

Operating Voltage:

11V – 15V (Negative Ground)
