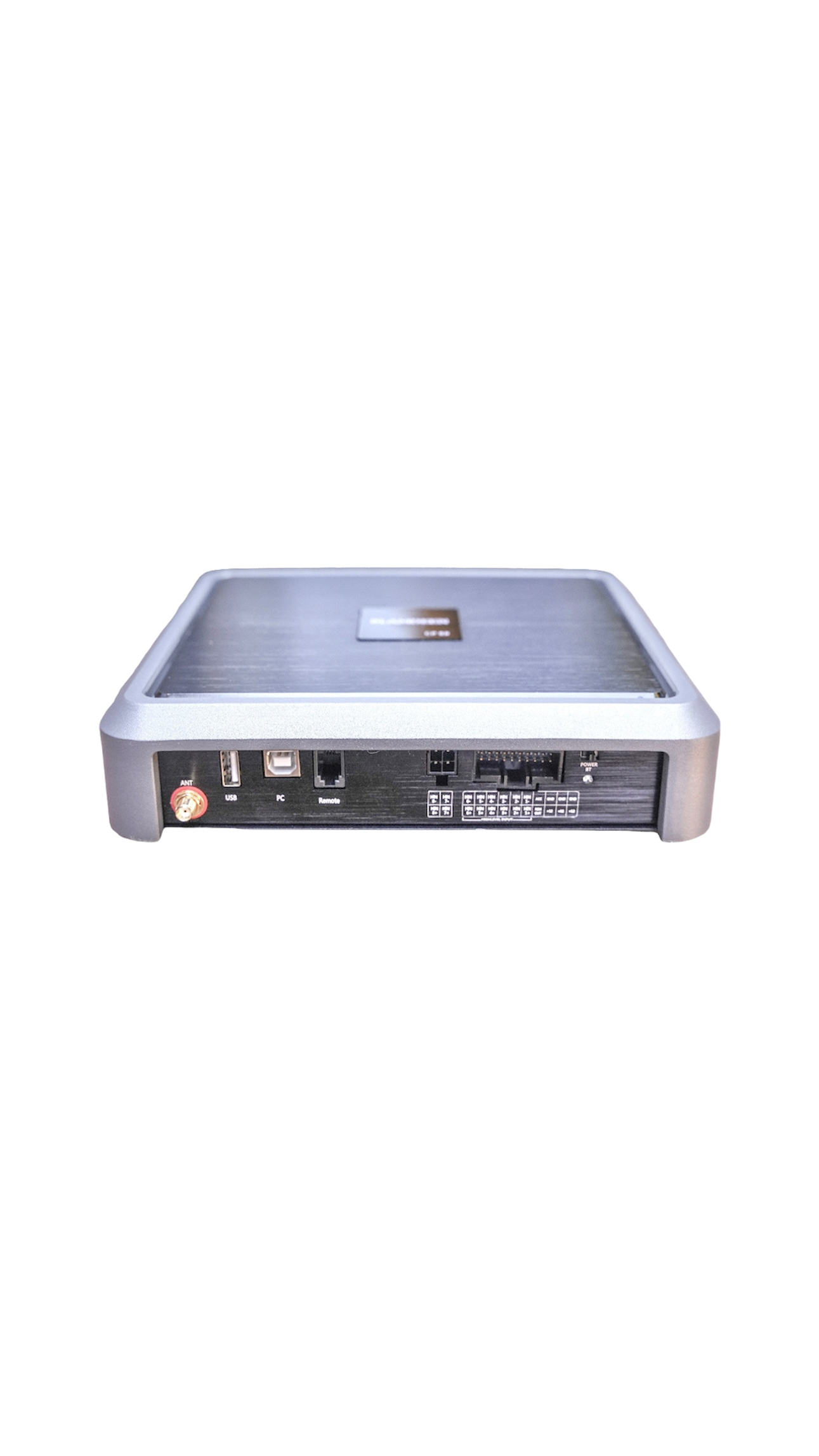

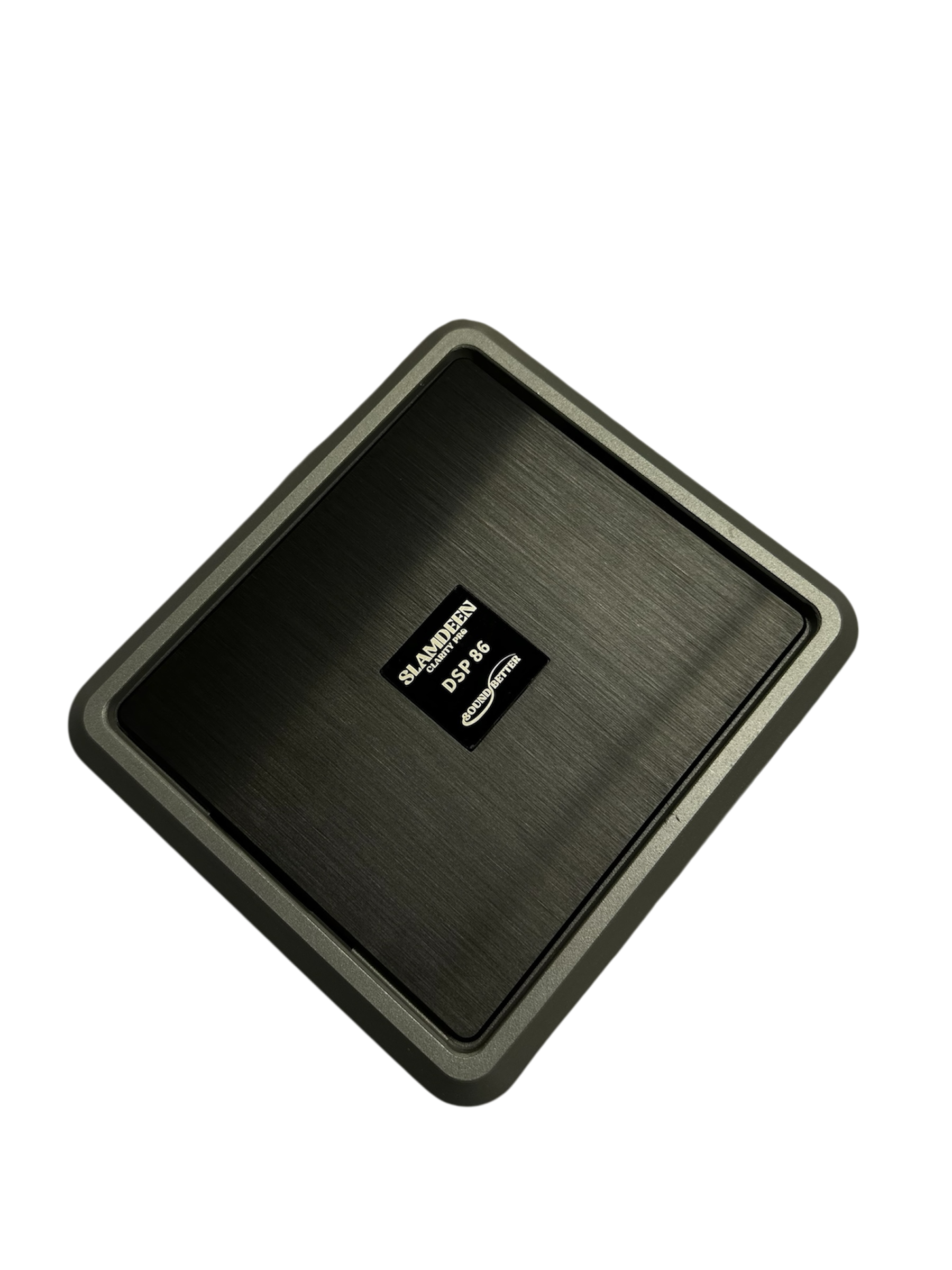

DSP 86

DSP / AMPLIFIER

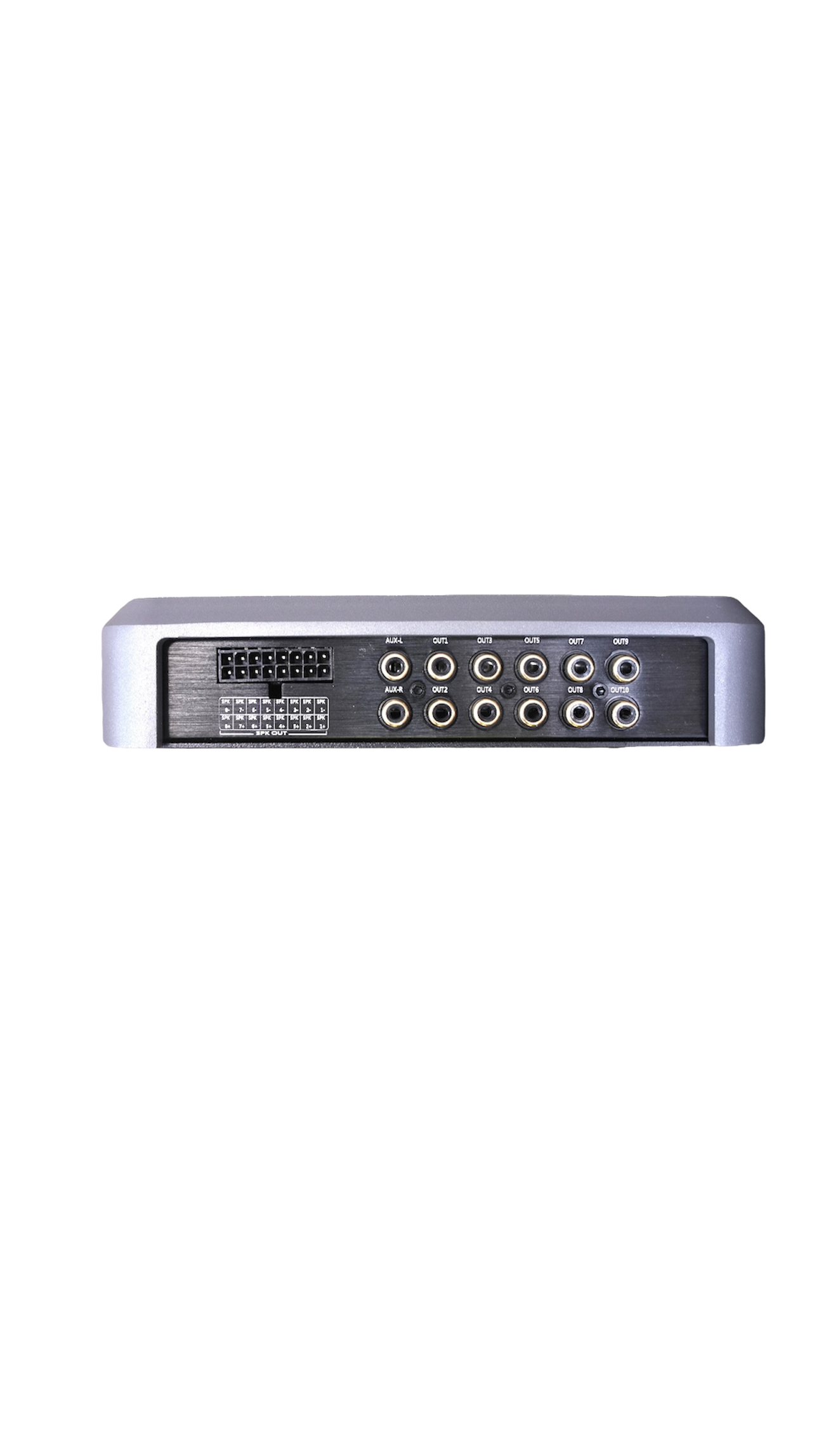

8 high level inputs

2 low input

10 2.3v low level ouput

ADAU1450 chip

32-bit SigmaDSP core

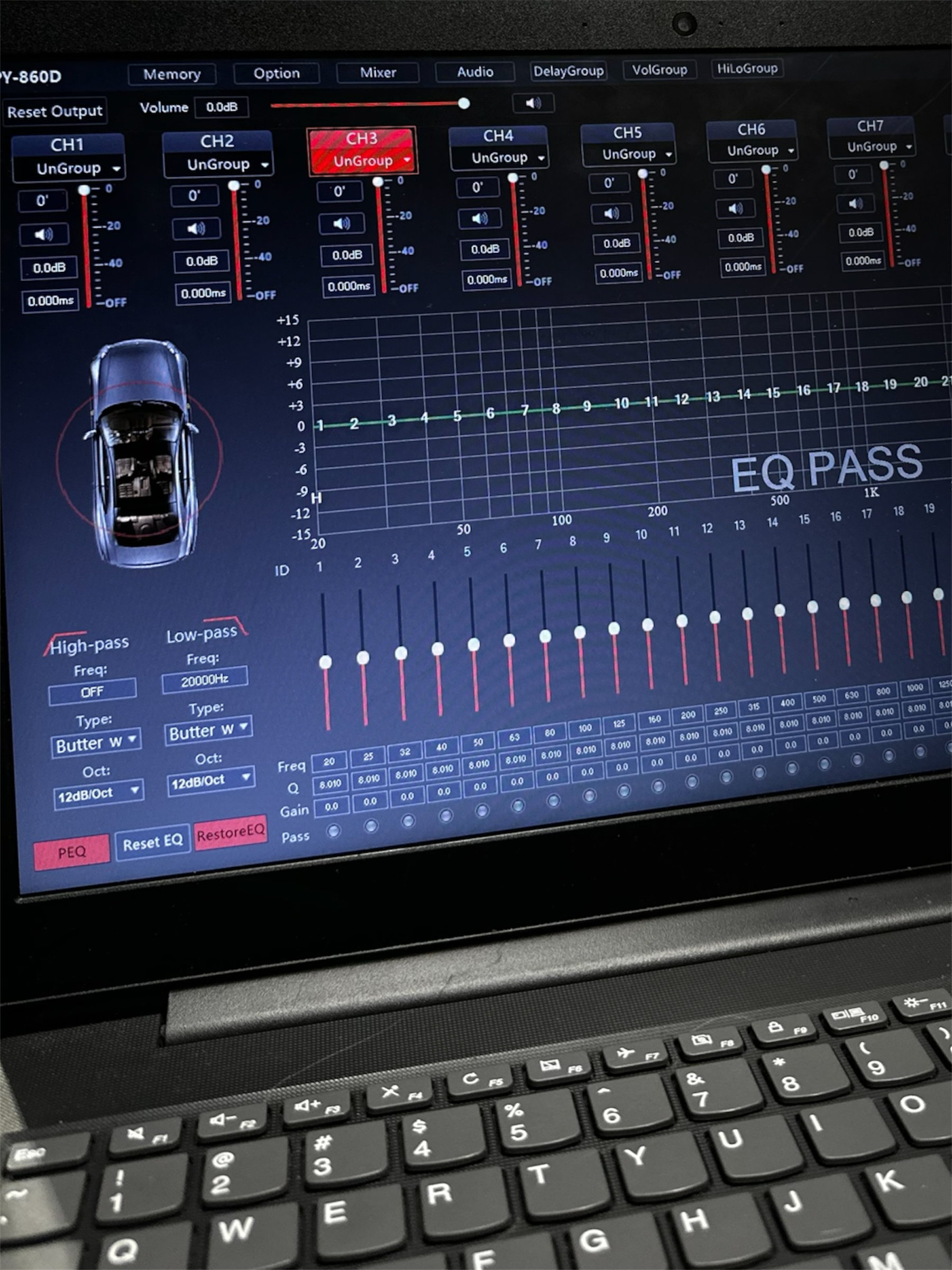

PC tuning

• Time alignment
• Phase alignment
• Fully adjustable crossovers
• 31-band EQ
• Gain staging
• Routing matrix

Bluetooth Streaming 30ft - useful if you’re doing:

• No head unit builds
• Demo builds
• Trunk show cars

(Optional) Built-in Amplifier

8 × 47w RMS @ 4Ω

This is NOT for bass or loud mids.

This amp section is only for if you’re not chasing volume

• OEM door speakers
• Dash speakers
• Tweeters

If you’re building loud, ignore the amp and use external amplifiers. The signal processing is the real value here.

Tuning file shared via GOOGLE file.
