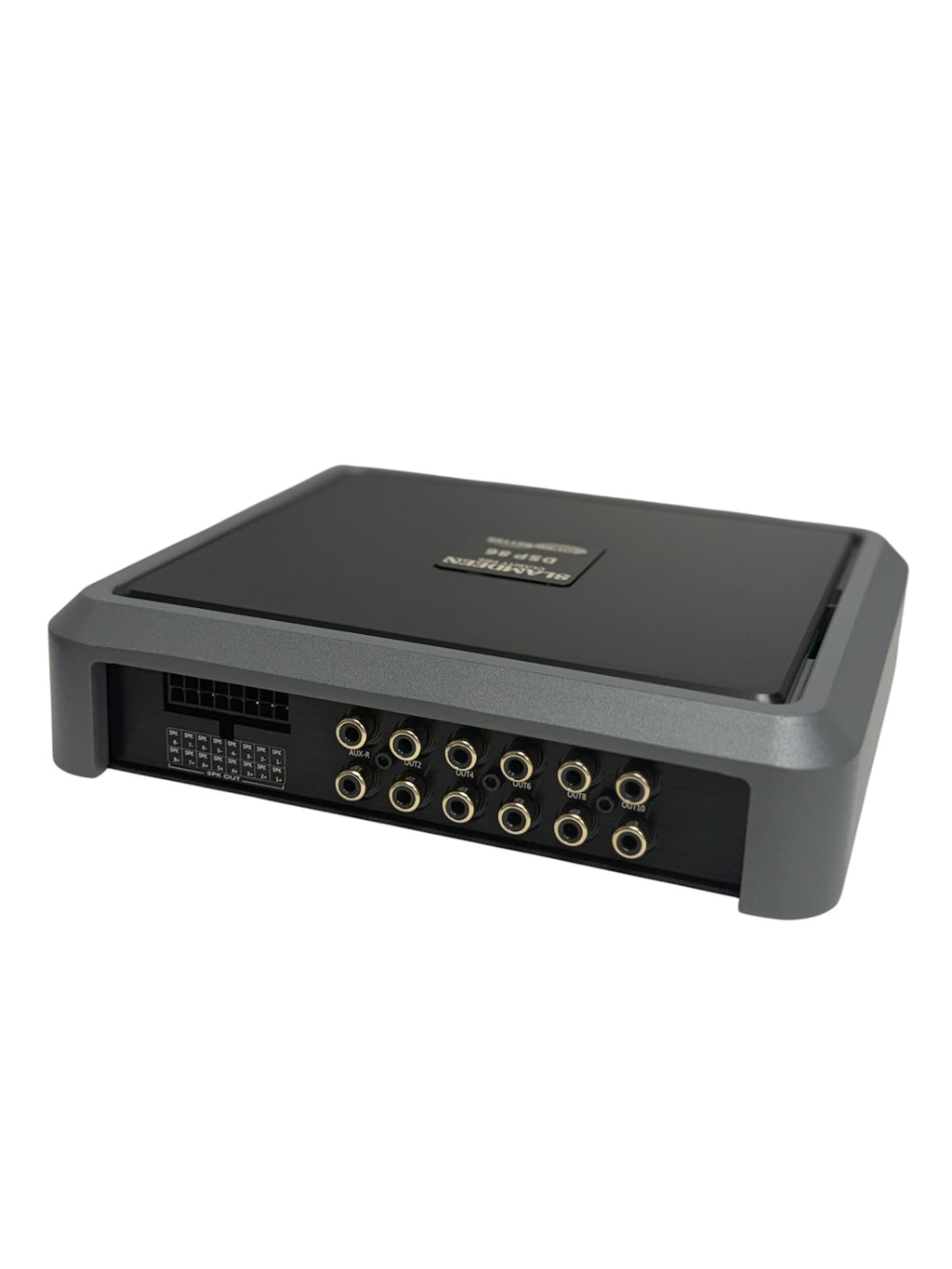

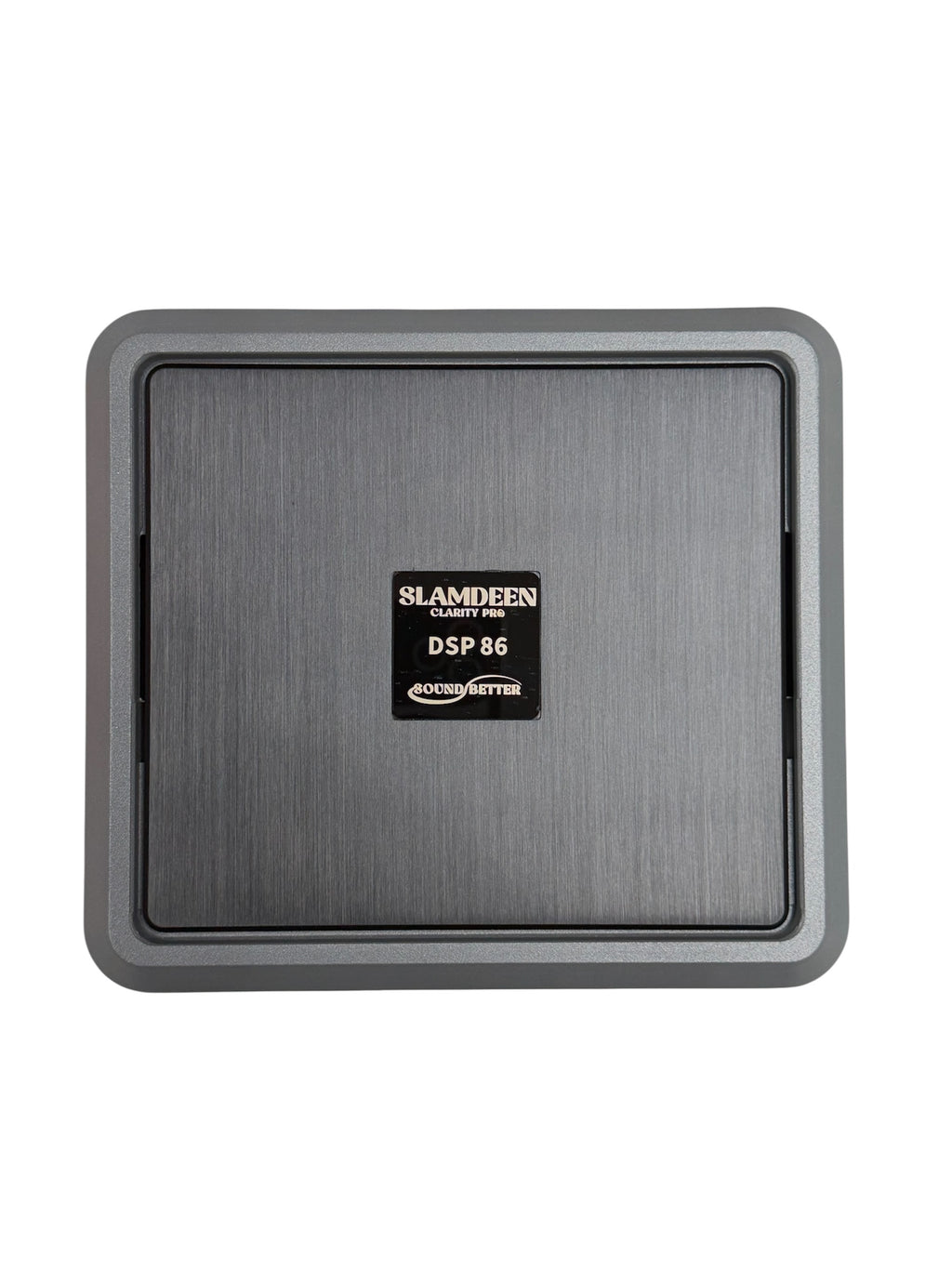

DSP 86

DSP / AMPLIFIER

8 high level inputs

2 low inputs

10 2.3v low level outputs

ADAU1450 hi-res chip

32-bit Sigma DSP core

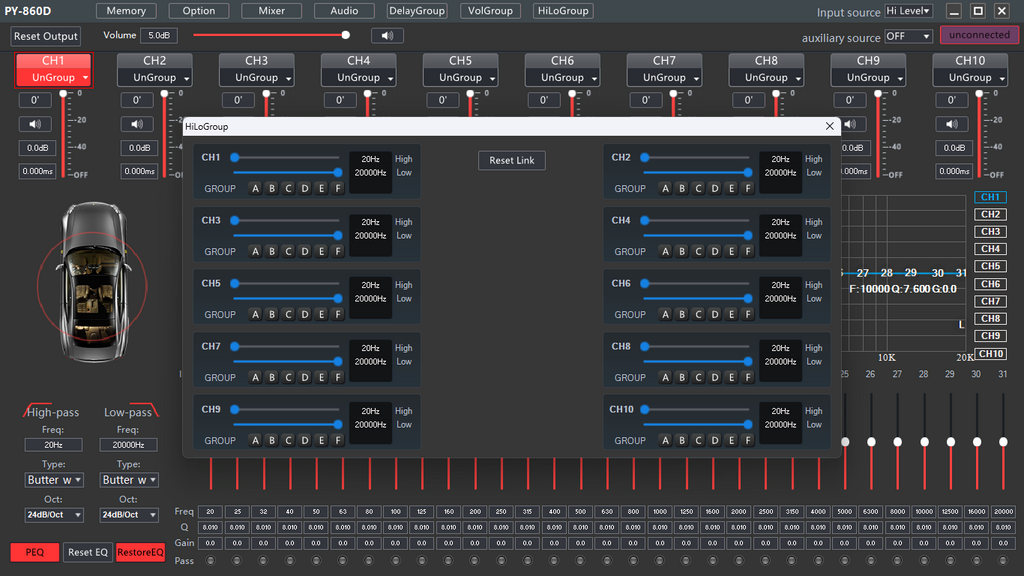

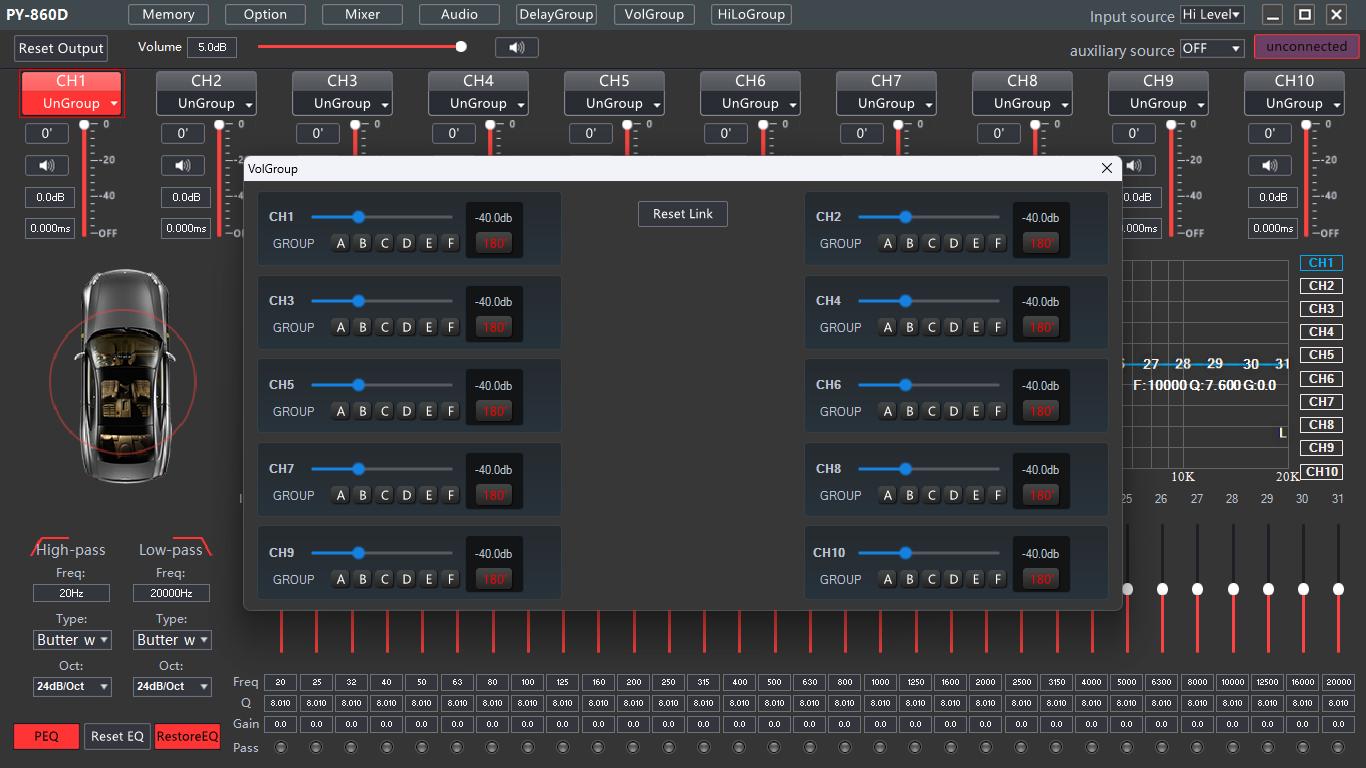

PC tuning

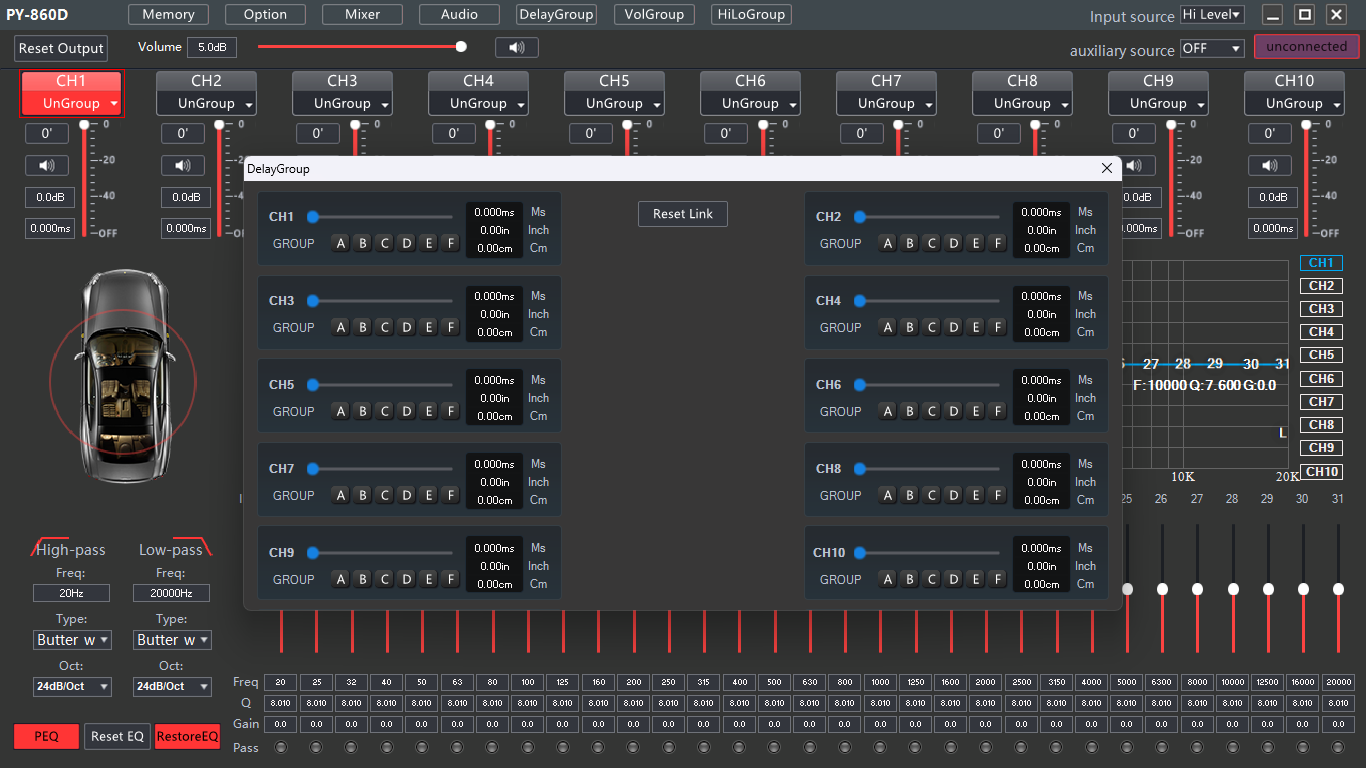

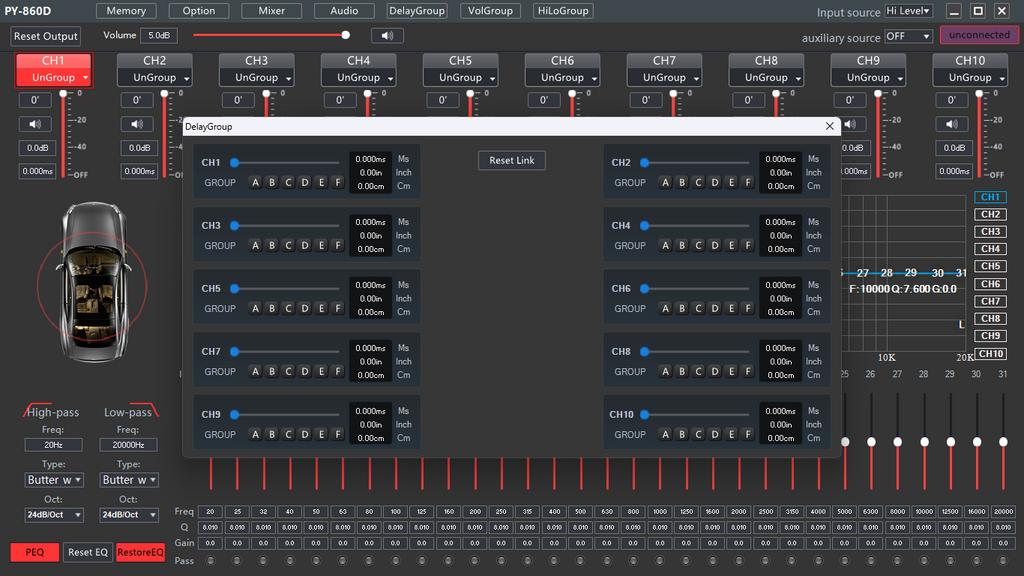

• Time alignment

• Phase alignment

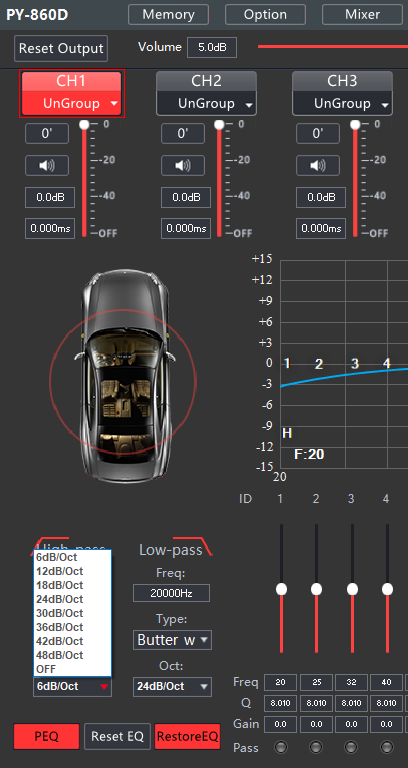

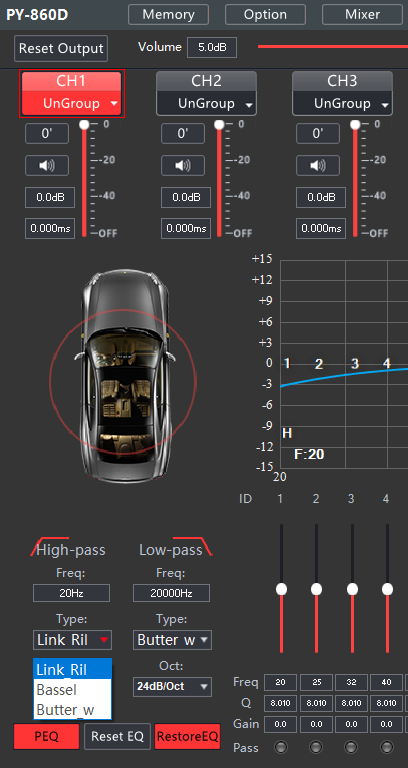

• Fully adjustable crossovers

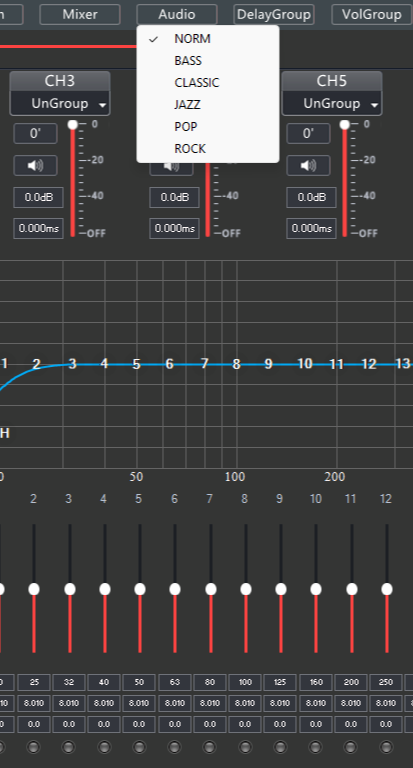

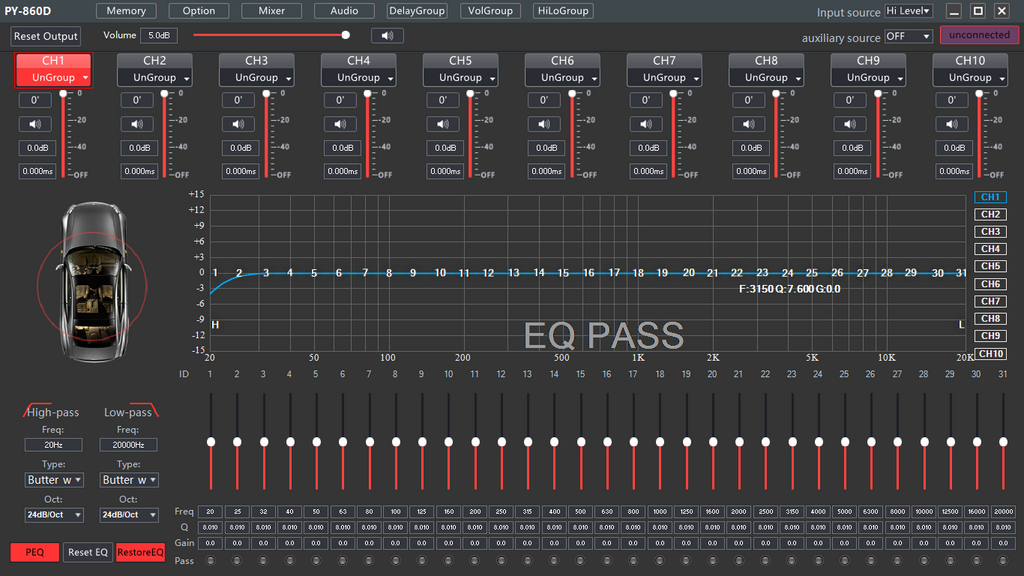

• 31-band EQ

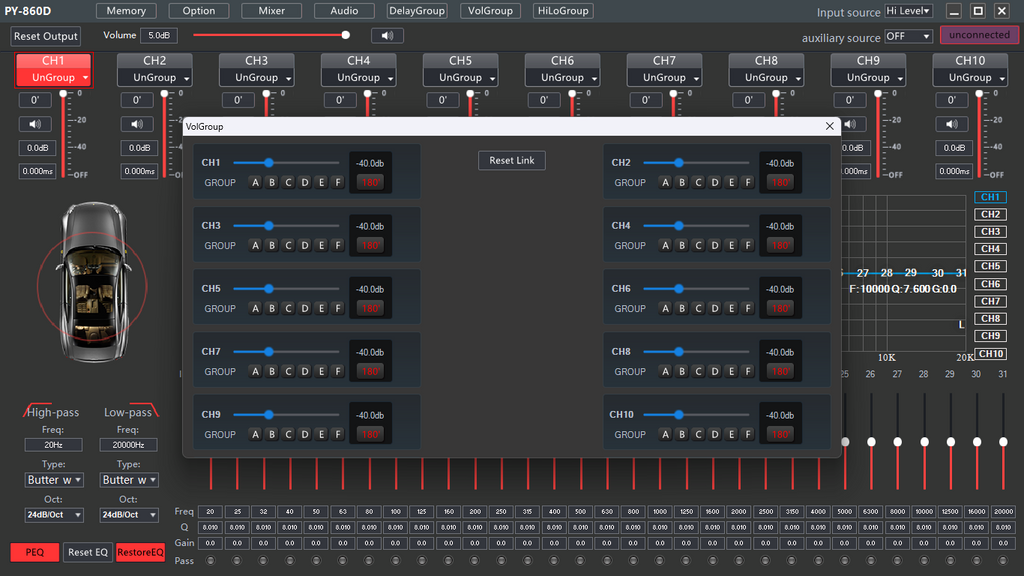

• Gain staging

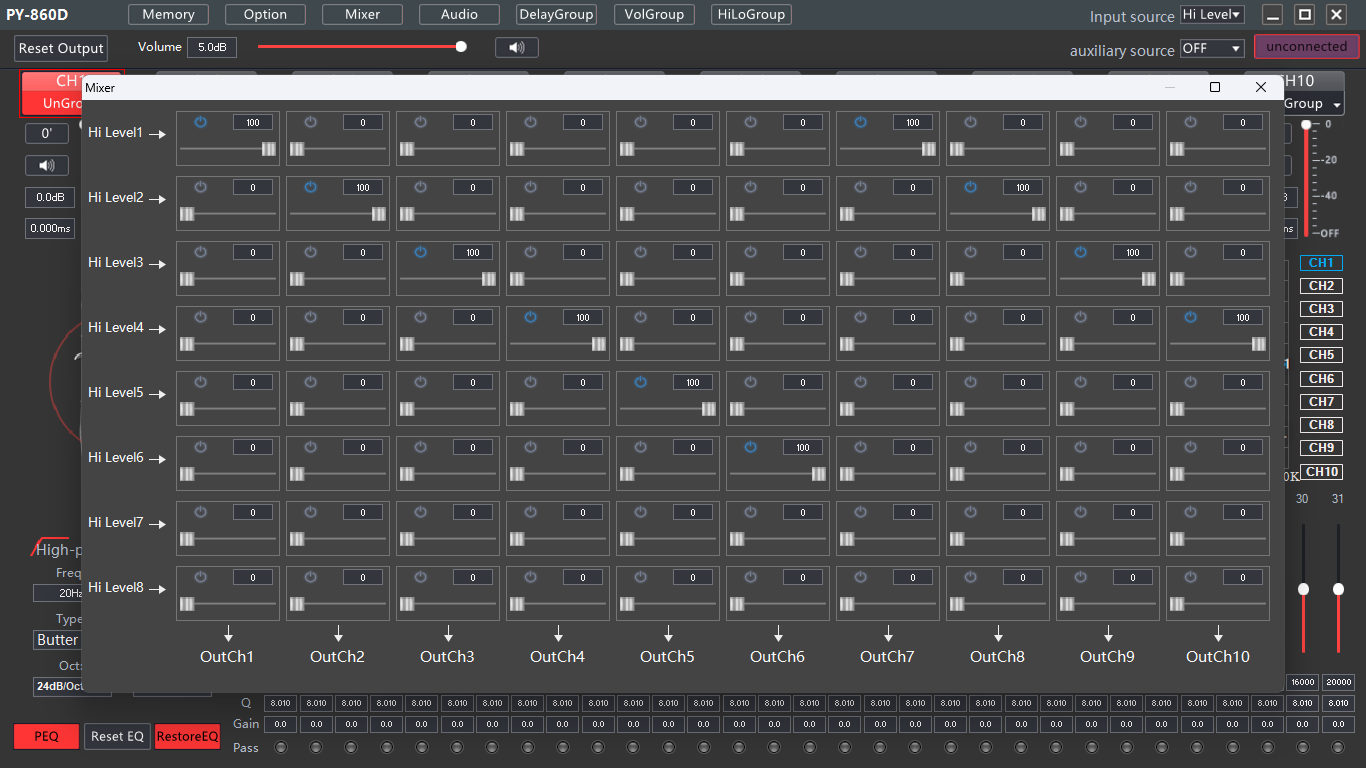

• Signal mixing

• Routing matrix

Use this DSP with OE head unit (hi inputs) OR use this DSP with bluetooth - no need for OE or aftermarket headunit

Bluetooth music streaming 30ft

(Optional) Built-in Amplifier

8 × 47w RMS @ 4Ω

This is NOT for bass or loud mids

This amp section is only for if you’re not chasing volume

• OEM door speakers
• Dash speakers
• Tweeters

If you’re building loud, ignore the amp and use external amplifiers, the signal processing and tuning is the real value here.

Tuning file shared via GOOGLE file and USB flash drive
